EVIL ENERGY AN Straight Push Lock Hose Fitting End - Black (4/6/8/10/12AN) | High-Performance Fuel & Oil Hose Connector for Racing, Automotive & Marine Applications

About this item

• [Size] 4AN to 1/4 inch barb, and thread size of 4an is 7/16-20 UNF.
  6AN to 3/8 inch barb, and thread size of 6an is 9/16-18UNF.
  8AN to 1/2 inch barb, and thread size of 8an is 3/4-16UNF.
  10AN to 5/8 inch barb, and thread size of 10an is 7/8-14UNF.
  12AN to 3/4 inch barb, and thread size of 12an is 1-1/16-12 UNF.


• [Application] The barb fitting only work with rubber fuel line.

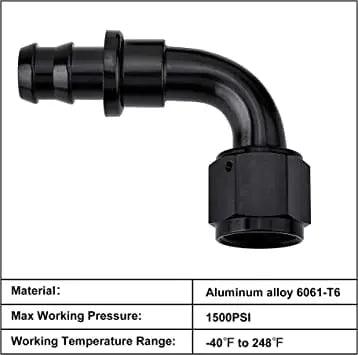

• [Parameter] Max working pressure: 1500PSI; Temperature range: -40℉ to 248℉.
• [Material] Made of aluminum alloy 6061-T6.
• [Installation] Easy to install, it is recommended to use clamps to enhance sealing.
