EVIL ENERGY AN Hose End Fitting - Straight Swivel Aluminum Black (4/6/8/10/12AN) - High Performance Fuel & Oil Line Connector for Racing, Automotive & Marine Applications

About this item

• [Size] The AN side is sealed by a 37 degree angle.


  The thread size of 4AN is 7/16-20 UNF
  The thread size of 6AN is 9/16-18 UNF
  The thread size of 8AN is 3/4-16UNF
  The thread size of 10AN is 7/8-14 UNF.
  The thread size of 12AN is 1 1/16-12 UNF.

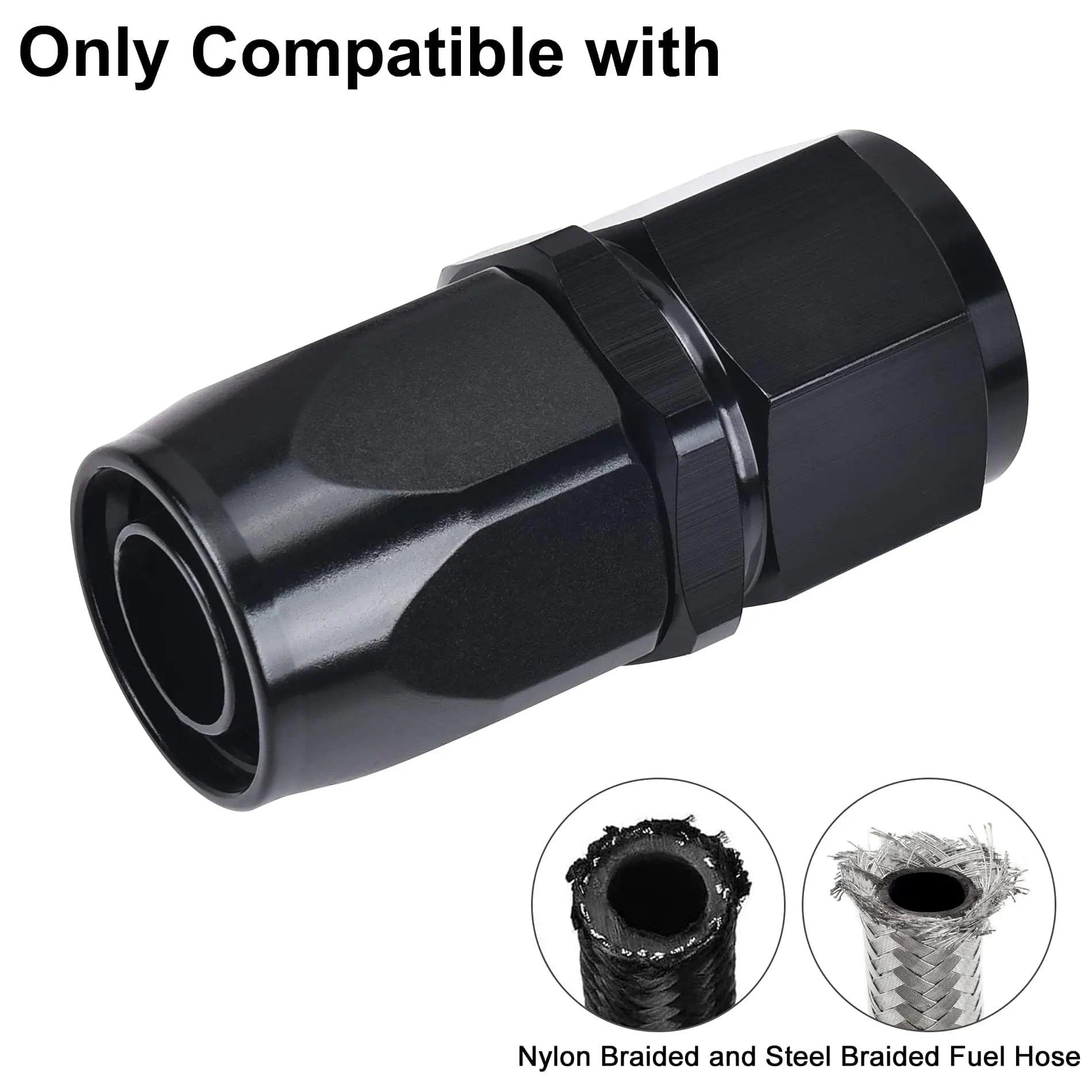

• [Application] The swivel fitting is only work with stainless braided and nylon braided hose .
• [Material] Made of aluminum alloy 6061-T6.
• [Parameter] Max Working Pressure: 1500PSI. Working Temperature Range: -40℉ to 248℉ (-40℃ to 120℃).
• [Feature] 360° Swivel design for easy assembly. It can be reused and recycle.

Product Description
