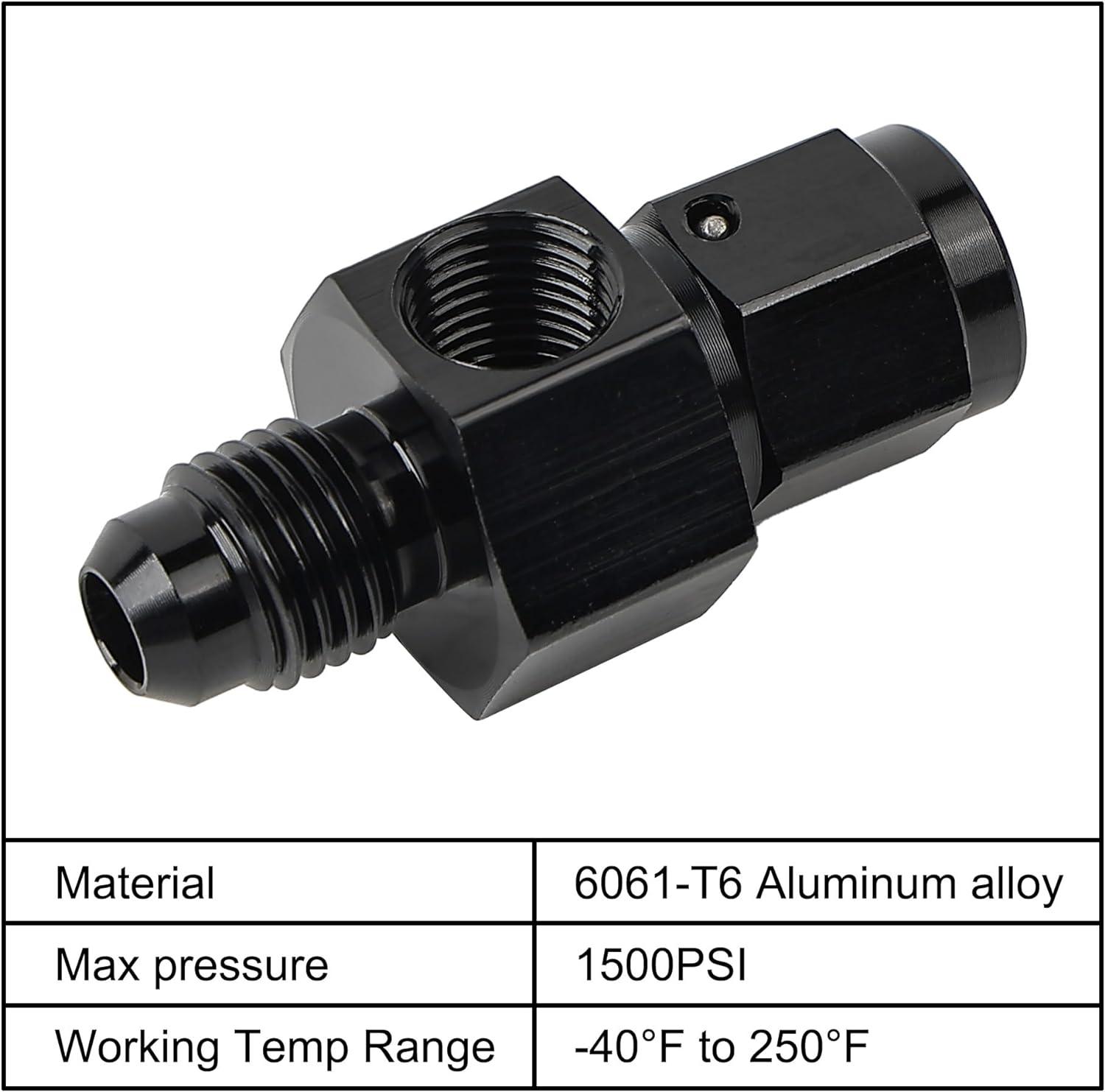

EVIL ENERGY AN Male Flare to Female Swivel Fuel Pressure Adapter with NPT Gauge Port - High Performance Fuel System Fitting for Racing, Turbo & Diesel Applications

$8.41 $15.3 -45% OFF

Free shipping on all orders over $50

7-15 days international

11 people viewing this product right now!

30-day free returns

Secure checkout

66901609

Guranteed safe checkout

Brand	EVIL ENERGY
Size	AN3 with 1/8 NPT Port, thread size of the 3AN is 3/8-24 UNF. AN4 with 1/8 NPT Port, thread size of the 4AN is 7/16-20 UNF. AN6 with 1/8 NPT Port, thread size of the 6AN is 9/16-18UNF. AN8 with 1/8 NPT Port, thread size of the 8AN is 3/4-16UNF. AN10 with 1/8 NPT Port, thread size of the 10AN is 7/8-14UNF. AN12 with 1/8 NPT Port, thread size of the 12AN is 1-1/16-12 UNF.
Max Working Pressure	1500 PSI
Working Temperature Range	-40°F to 250°F
Color	Black
Connector Type	Flare
Thread Type	NPT
Exterior	Aluminum
Number of Pieces	1 or 2 PCS

ABOUT THIS ITEM

Sealing: The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.
Material: Made of 6061-T6 aluminium alloy.
Max working pressure: 1500PSI,working temperature: -40°F to 250°F.
EVIL ENERGY provide fuel pressure gauge fitting 3-month warranty. Any problem you might have,please feel free to contact us via Amazon message.
