EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting - High Performance Fuel Line Connector for Racing, Turbo & Custom Automotive Applications
$4.94$8.99-45% OFF
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
27909976
Guranteed safe checkout
Description
Product detail
Size
4/6/8/10/12/16/20an ORB to 4/6/8/10/12/16/20an
Material
Aluminum
Brand
EVIL ENERGY
Color
black
Connector Type
Flare
Exterior
Aluminum
Thread Type
NPT
Number of Pieces
1 or 2 or 4
About this item

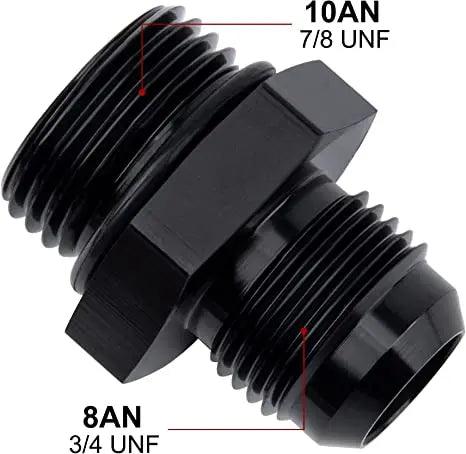

Size: The thread size of 4AN is 7/16-20 UNF,6AN is 9/16-18 UNF,8AN is 3/4-16 UNF,10AN is 7/8-14 UNF,12AN is 1 1/16-12 UNF.
Seal: The AN side of the flare is sealed by a 37 degree angle and The ORB side is sealed with an O-ring.
Material: Made of aluminum alloy 6061-T6 body and NBR rubber O-ring.
Parameter: Working pressure: 1500PSI. Working temperature-65°F-252°F. O-ring temperature range: -4°F-392°F.
Application: Suitable for fuel rail, oil cooler, fuel pump, fuel pressure regulator, fuel filter, etc.
